Portable / mobile single-phase safety transformers in Epoxy resin casted series ET-CEE/2 with powers of 200VA for low voltages (SELV)

Portable / mobile single-phase safety transformers in Epoxy resin casted series ET-CEE/2 with powers of 200VA for low voltages (SELV). In plastic housing shed short circuit protected.


Operation:

VDE 0570 Teil 2-6 / DIN EN 61558- 2-6 / IEC 61558- 2-6; closed version (sealed in plastic housing), short circuit protected

Protection: IP 44, portable
Protection class: II
Insulation class: ta40E
Frequency: 50 / 60Hz
Implementation primary: 2m cable with contour plug with replaceable glass tube fuse
Implementation secondary: 2 CEE-socket 16A
primary: 230V
secondary: optional 24V or 42V

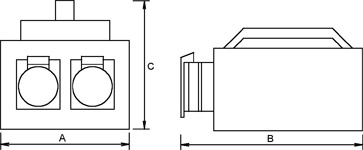

Portable / mobile single-phase safety transformers in Epoxy resin casted series ET-CEE/2 with powers of 200VA for low voltages (SELV) Sketch
Item No.: Item No.: Power   Weight (kg)
230V / 24V 230V / 42V (VA) A B C D E F Cu. Whole
PS21957706 PS22957706 200 260 160 140 / / / 0,8 7
