- Small + Medium Power
- Ultra Compact Design
- Environmental Friendly
- Vacuum Cast Resin
- Up to 200kV 1~ and 3~
- 1~ up to 10kVA
- 3~ up to 30kVA
- 2.5Hz up to 1000kHz
- Customer Specific Design
| Type | Uprim | Usec | Frequency | Power | Application field |
|---|---|---|---|---|---|
| V | kV | Hz | VA | ||
| HVDT-8K-7.7K | 3x 337 ±10% | 3x 7.7 | 50 | 8000 | test bay |
| HVDT-0.4K-22K | 3x 400 | 3x 20 | 50 | 400 | test bay |
| HVDT-2K-33K | 3x 400 | 3x33 | 50 | 2000 | test bay |

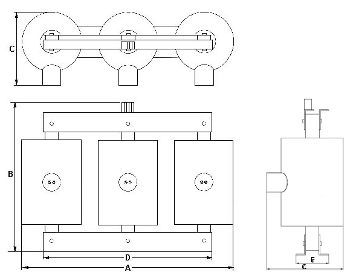

| Type | Phase | Dimension in mm | ||
|---|---|---|---|---|
| A | B | C | ||
| 3UI420 | 3 | 500 | 350 | 300 |
| 3UI530 | 3 | 600 | 450 | 350 |
| 3UI550 | 3 | 680 | 640 | 350 |
