Industrial Gensets - Gasoline Premium Series

CONSTRUCTION

Motor and Alternator coupled as Monoblock, integrated with anti-vibration pads in a tube frame chassis Aircooled 4 stroke OHV-Engines with Oil sensor and switch off

1~ Phase

brushless alternator
2 single phase sockets
Thermal Circuit Breaker

3~ Phase

compound regulated alternator
Socket 230V / 1~
Socket 230/400V / 3~
Thermal Circuit Breaker

Industrial Panel with IP44 sockets:

Voltmeter
Circuit Breaker
Earth leakage circuit breaker
Operation hours counter

OPTIONS:

Autostart by Signal
Automatic Voltage Regulator (AVR)

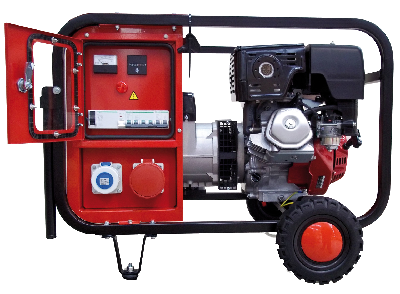

AMS Mains Fail Automatic Start with ATS automatic transfer switch (foto right)
Natural Gas (HONDA - Engines)
High Capacity Fuel Tank
Wheel Kit

--> click for our extended datasheet

MODEL	Power 3000Upm/50Hz		Engine		Output
	kVA	Watt	Manufacturer	PS	Vac

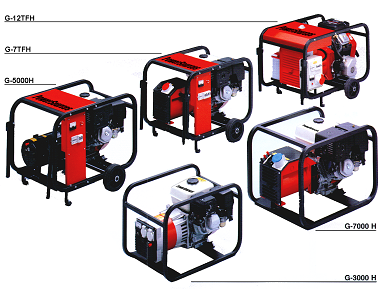

G 5000 H	5	4000	Honda	9	230 Vac 1~ 50Hz
G 7000 H	7	5600	Honda	13	230 Vac 1~ 50Hz
G 10000 V	10	8000	Vanguard	16	230 Vac 1~ 50Hz
G 12000 V	12	9600	Vanguard	18	230 Vac 1~ 50Hz
G 12000 H	12	10000	Honda	20	230 Vac 1~ 50Hz
G 5 TF H	5	4000	Honda	9	230/400V 1/3~ 50Hz
G 7 TF H	7	5600	Honda	13	230/400V 1/3~ 50Hz
G 10 TF V	10	8000	Vanguard	16	230/400V 1/3~ 50Hz
G 12 TF V	12	9600	Honda	18	230/400V 1/3~ 50Hz
G 12 TF H	13	10000	Honda	20	230/400V 1/3~ 50Hz
G 15 TF H	15	12000	Honda	22	230/400V 1/3~ 50Hz

Power Data apply for 20°C and sea level (NN). Output power drops approx. by 4% per 300m over sea level and 6°C temperature rise.

Pricing: net ex works Meerbusch, Germany
Delivery: Forwarder of customer's choice
Warranty: 12months

Overview Power Generators
