- Rugged and economic design
- Lombardini engine
- supersilent
- emergency use available
|
 |
| Model |
PAL-6,5 |
PAL-10 |
PAL-15 |
| Engine Make |
Lombardini |
Lombardini |
Lombardini |
| Engine Model |
4LD820/L |
9LD625/2 |
5LD825/2 |
| Emergency kVA |
6,7 |
11,0 |
14,8 |
| Alternator kVA |
6,5 |
10,0 |
13,5 |
| Voltage ( V )with 50Hz |
400 / 230 |
400 / 230 |
400 / 230 |
| Continous Power ( kVA ) |
6,1 |
10,4 |
13,5 |
| No. of cylinders |
1 |
2 |
2 |
| Displacement ( ccm ) |
817 |
1248 |
1649 |
| R.P.M. |
1500 |
1500 |
1500 |
| Engine continous Power ( kW ) |
6,5 |
11,0 |
14,3 |
| Cooling |
Luft |
Luft |
Luft |
| Alternator Manufacturer |
MeccAlte oder
gleichwertig |
MeccAlte oder
gleichwertig |
MeccAlte oder
gleichwertig |
| dB at 7m ( A ) |
70 |
70 |
70 |
| Fuel tank capacity ( L ) |
11,5 |
10,0 |
29,0 |
| Dimensions ( mm ) |
1500 X 800 X 1350 |
1500 X 800 X 1350 |
1700 X 800 X 1350 |
| Weight ( kg ) |
375 |
480 |
600 |
|

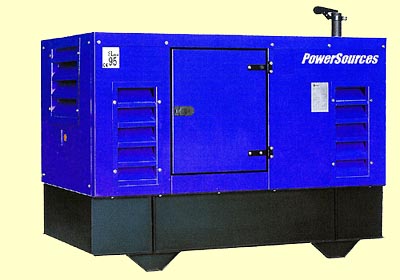

Mounting Arrangement: Set of engine and alternator coupled directly by means of a
flexible disk, making a monoblock and mounted on the base frame with anti vibration
mountings in soundproof cabin. The modular structure base frame (easy assembly is
made of pressure bent steel profiles and sound attenuating elements with a
rock-wool layer, which complies with the prevailing regulations. Includes hot air
extraction fan for the engine and alternator cooling. Residential type silencer
included.
Ruggerini Engine: Four stroke, direct injection and air cooled Diesel engine.
Equipped with: fuel tank, stop and solenoid insulation.
Alternator: Mecc-Alte with brushes at 50 Hz, compound regulation, two poles, IP 21
protection degree and class H insulation.
Control Panel: The generating sets can be supplied with MANUAL or AUTOMATIC control
panel
|
Manual Control Panel:
Control Panel for measure and protection equipped
with:
- CMM 10 control unit which includes the following
functions and components:
- Measure and visualization fo the following
parameters ( instant values ) by means of a
display: Three-phase voltage, three-phase
current, frequency.
- Mechanical hour counter.
- LED indicators: Activated system, battery charger
failure, low oil pressure, high soundproof cabin
temperature, overspeed and generator failure.
- Alarms: Low oil pressure, high soundproof cabin
temperature, overspeed, generator failure.
- Start key and stop button.
- Sound alarm
- Emergency push button.
- Four pole circuit breaker.
- One single-phase socket.
- One three-phase socket.
|
Automatic Control Panel:
Metal cabinet to be mounted on the wall, separate from
the generating set, with following components:
- CGEA 10 control unit for control and protection of
the generating set, which includes:
- The condition of the gererating set, measurements,
alarm messages, etc are shown on the LCD display.
All messages can be deleted with the reset button.
- Phase detector and a 2 A battery charger included.
- Measurements: Generator frequency, voltage and
current of set lines, voltage of mains lines, working
hour counter, battery voltage.
- Alarms: Low oil pressure, hight soundproof cabin
temperature, battery charger alternator failure,
overspeed, generator voltage out of margin,
overcurrent of the generator, frequency out of
margin, atrat failure.
- Adjusting parameters (available through and access
code): Voltage margins, maximum current, relation-
ship of current transformers, frequency margins,
maximum duration of the start attempts, cooling
time, time for switching off the genset after mains
recovery, maximum delay for stopping order.
- Operating mode: Auto, manual, test and disconnect
- Emergency push button.
- Sound alarm
- Contactors included
|
|
