Application:
Protection of expensive, sensitive installations, as well as, electrical and electronic systems against overvoltage, caused, for example by, lightning or power surges due to the static caused by long cables.Product range

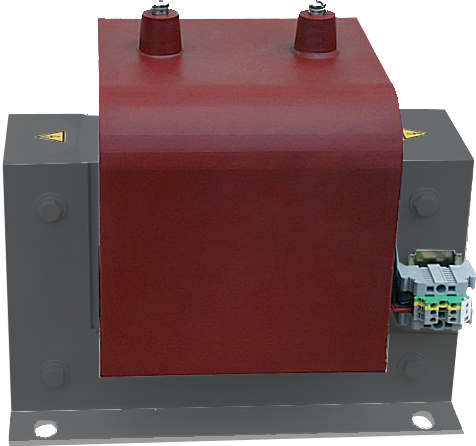

- High-voltage single-phase transformers
- High-voltage three-phase transformers
- Insulation voltage up to 50 kVeff
- Power to tens of kVA
Examples of applications
- Radio transceiver devices
- Mobile telephony
- Mechanical engineering
- Measuring and controlling techniques
- Safety techniques

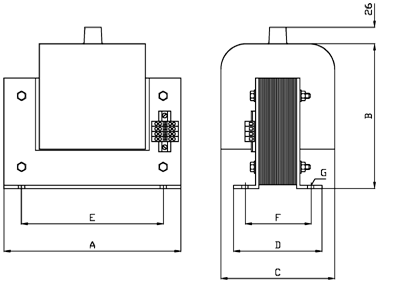

| Type | Power | A | B | C | D | E | F | G | Weight |
| VA | mm | kg | |||||||
| HVTT 114A | 300 | 190 | 155 | 150 | 120 | 152 | 90 | 7 | 10,5 |
| HVTT 114B | 400 | 190 | 155 | 150 | 145 | 152 | 115 | 7 | 14,0 |
| HVTT 132A | 600 | 220 | 180 | 160 | 130 | 175 | 100 | 9 | 16,5 |
| HVTT 132B | 800 | 220 | 180 | 160 | 145 | 175 | 125 | 9 | 19,2 |
| HVTT 168A | 1000 | 280 | 225 | 180 | 130 | 225 | 100 | 9 | 30,0 |
| HVTT 168B | 1500 | 280 | 224 | 180 | 145 | 225 | 125 | 9 | 34,4 |
| HVTT 180A | 2000 | 300 | 245 | 215 | 160 | 250 | 125 | 12 | 45,8 |
| HVTT 180B | 2500 | 300 | 245 | 215 | 180 | 250 | 150 | 12 | 52,5 |
| HVTT 210A | 3000 | 350 | 285 | 275 | 160 | 280 | 130 | 12 | 66,5 |
| HVTT 210B | 3500 | 350 | 285 | 275 | 180 | 280 | 150 | 12 | 75,6 |
| HVTT 240A | 4000 | 400 | 300 | 220 | 160 | 325 | 125 | 12 | 92,6 |
| HVTT 240B | 5000 | 400 | 320 | 250 | 180 | 325 | 150 | 12 | 107,0 |
| HVTT 240C | 6000 | 400 | 320 | 300 | 220 | 325 | 200 | 12 | 138,0 |
| HVTT 240D | 8000 | 400 | 320 | 300 | 250 | 325 | 220 | 12 | 154,0 |
