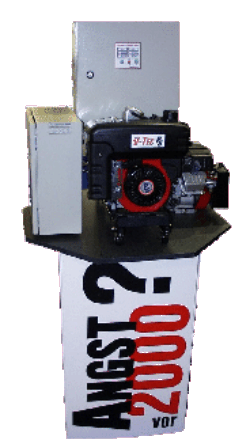

Power Generator - Millenium Protector

The Millennium Protector is the first mobile generator system which provides universal application as mobile genset and mains fail protection if equipped with the ATP (automatic transfer panel). This option can be added at any time when required.

Typ	MP 2200	MP 2200ES	MP 3500	MP 3500ES
Abmessungen/Dimension	650x400c400mm BxHxT/WxHxD
Gewicht/Weight	27kg	29kg	31kg	33kg
Motor/Engine	Tecumseh OHV 6.5 Special
Leistung/Power	4,5 kW 8PS
Startsystem/Starter	Seilzug/Recoil	Seilzug/Recoil E-Start	Seilzug/Recoil	Seilzug/Recoil E-Start
Tankinhalt/Fuel Tank	3.1 L
Verbrauch/Consumption	1.2l/h mit/at 70% Last/Load		1.4l/h mit/at 70% Last/Load
Generator/Alternator	synchron/synchronous
Leistung/Power	2.200VA at 230Vac/50Hz 2.700VA at 115Vac/60Hz		3.000VA at 230Vac/50Hz 3.700VA at 115Vac/60Hz
Schutzart/Protection Class	IP23
Optionen/Options
Radsatz/Wheels	x	x	x	x
Transfer Panel / Auto/Man.	MTP 2	ATP 2	MTP 3	ATP 3

ATP - Automatisches Transfer Panel

The ATP (Automatic Transfer Panel) completes the ES-Version to a
fully automatic mains fail genset. When mains fails, the ATP starts up
the genset. If the output voltage is stable, the load is automatically
transferred to the generator. If mains comes back the load is
retransferred to mains and the genset is switched off.
